Authorized Distributors of JPE Products

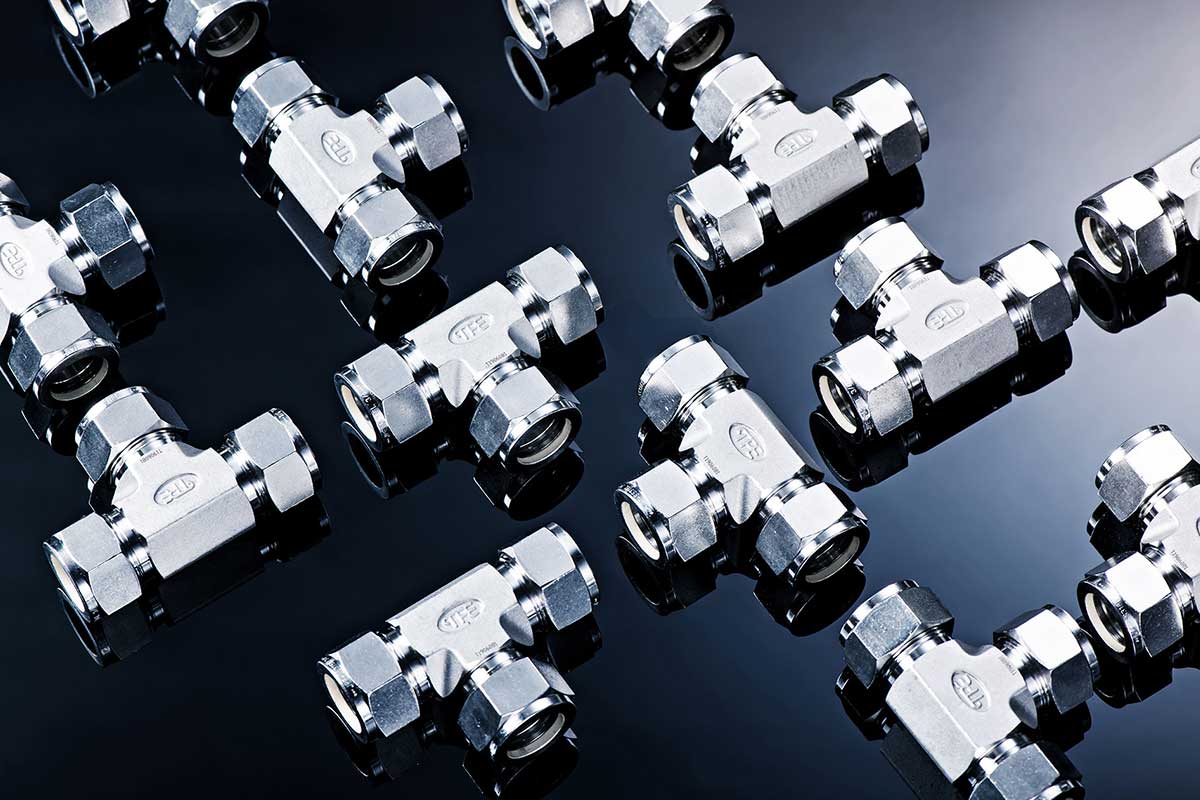

Instrument Tube Fittings
Double ferrule fittings: connectors, unions, elbows, tees, crosses. ASME B31.3, leak-tight seal, torque-free, wide material options.
Typical Sizes:
Tube OD: 1/8”–2” (3–50 mm)
Material:
SS316/316L standard;
Monel 400/625/C-276; Brass
Thread Type:
NPT (ASME B1.20.1);
BSPP/BSPT (ISO 7/1); SAE J514
Pipe Fittings
Standard pipe fittings: nipples, elbows, tees, crosses, plugs, bushings. For general and process lines.
Typical Sizes:
1/8”–1” (6–25 mm)
Material:
SS316/316L; Brass; Monel; CS
Thread Type:
NPT (ASME B1.20.1); BSPT (ISO 7/1)

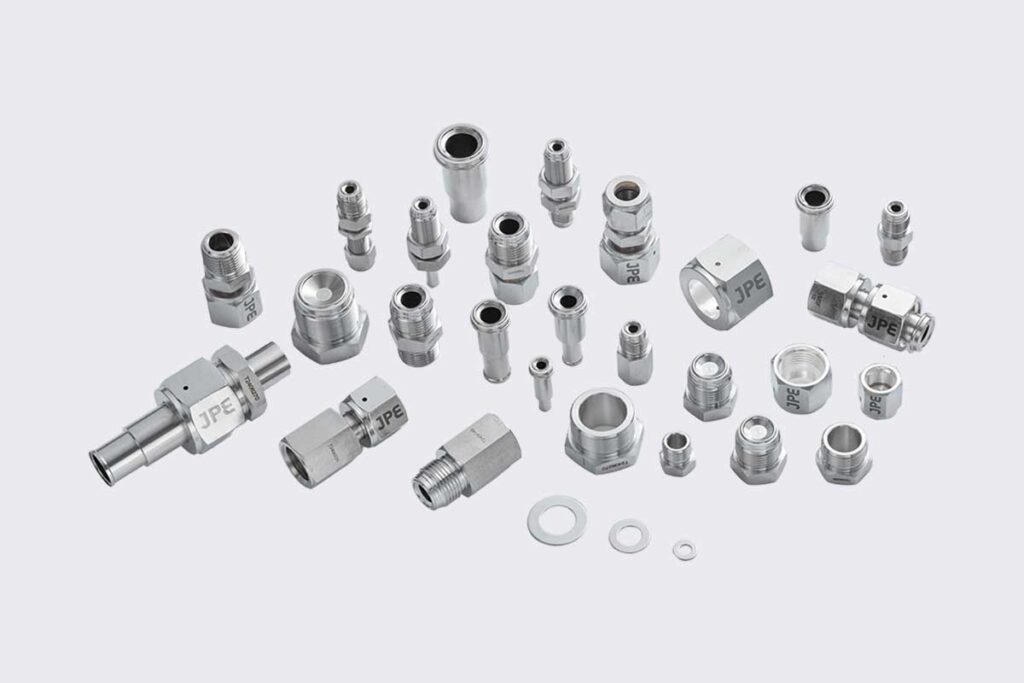

Face Seal Fittings
VMS metal gasket face seal: glands, nuts, unions, elbows, tees for UHP service. Helium leak-tested, ultra-clean.
Typical Sizes:
1/8”–1” (6–25 mm)
Material:
SS316L VAR; Nickel;
Silver-plated threads
Thread Type:
Tube Butt Weld, Socket Weld, Tube End;
BSPT/NPT as required

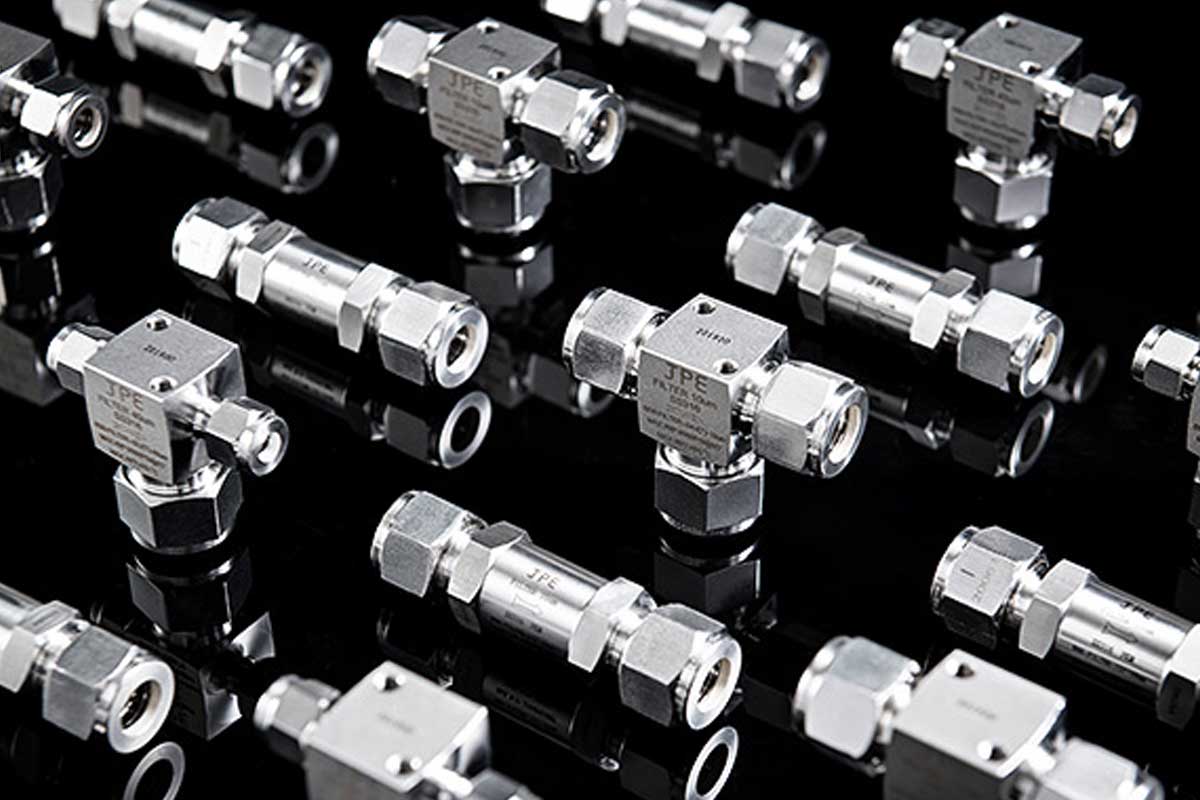

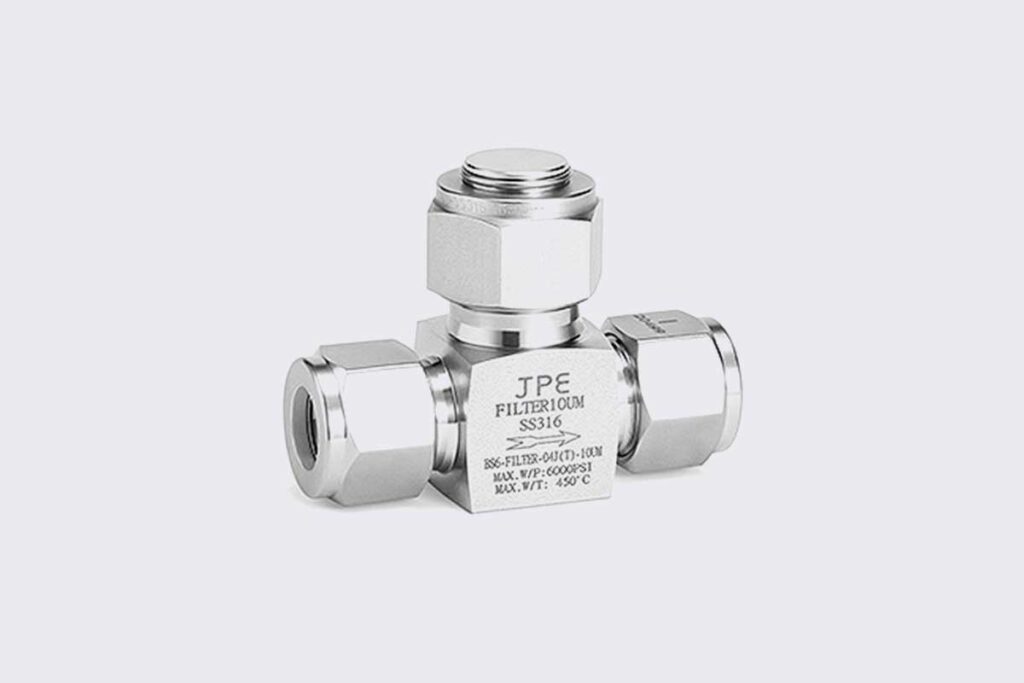

Filters
In-line and T-type filters for gas/liquid. Micron ratings 0.5–40 µm. Compact, replaceable elements.
Typical Sizes:
1/8”–1/2” (6–12 mm)
Material:
SS316/316L; Monel C276 optional
Thread Type:
Tube End, NPT, BSPT

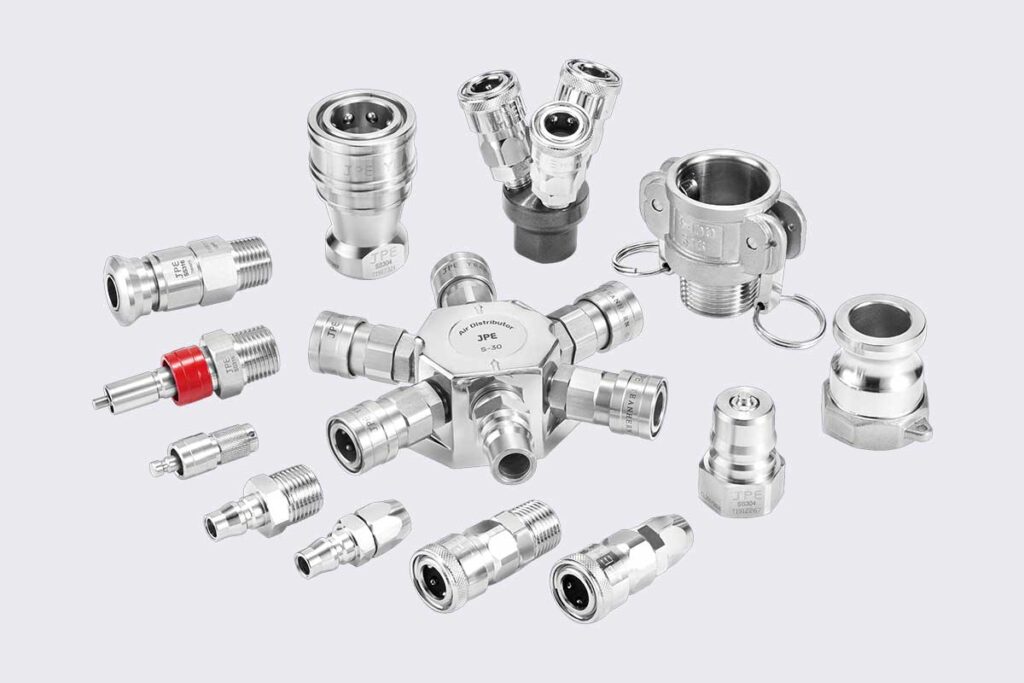

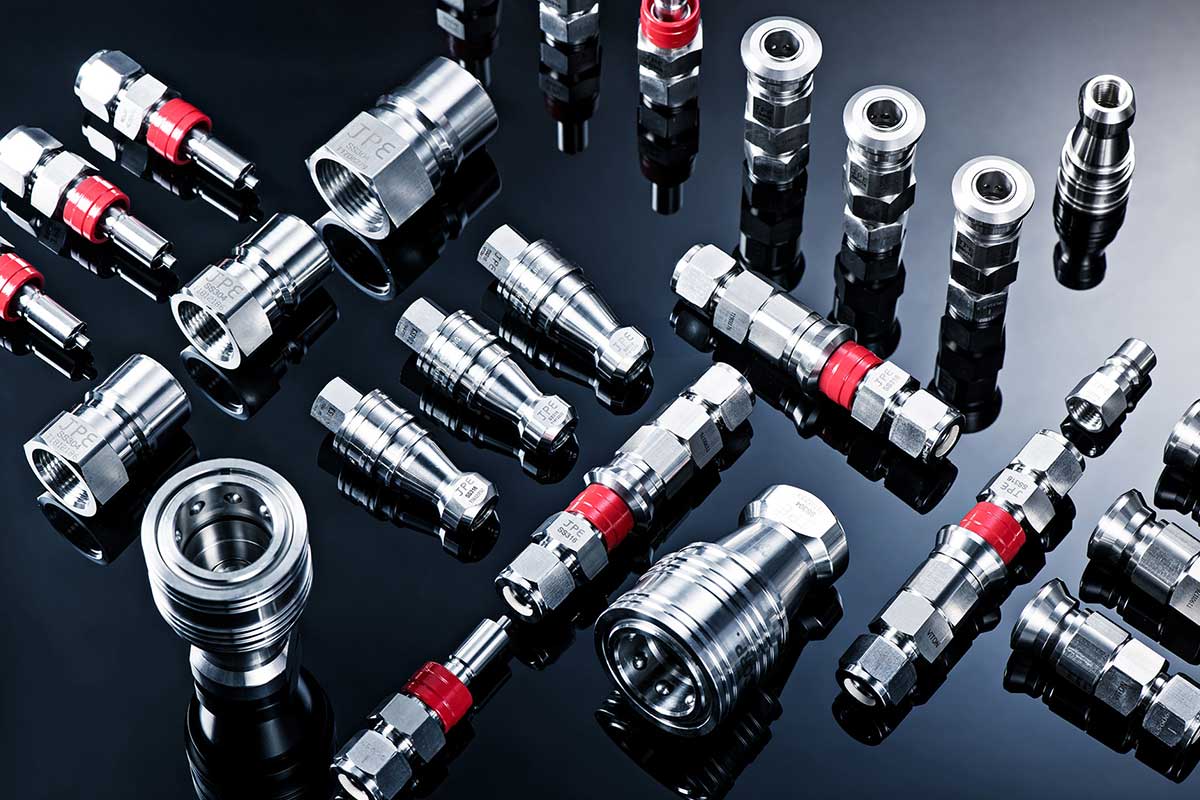

Quick Couplings
Push-to-connect/twin valve/flat-face couplers for air, hydraulic or chemical.
Typical Sizes:
1/8”–2” (3–50 mm)
Material:
SS316/316L; Brass; CS
Thread Type:
NPT (ASME B1.20.1); BSPT (ISO 7/1); SAE J514

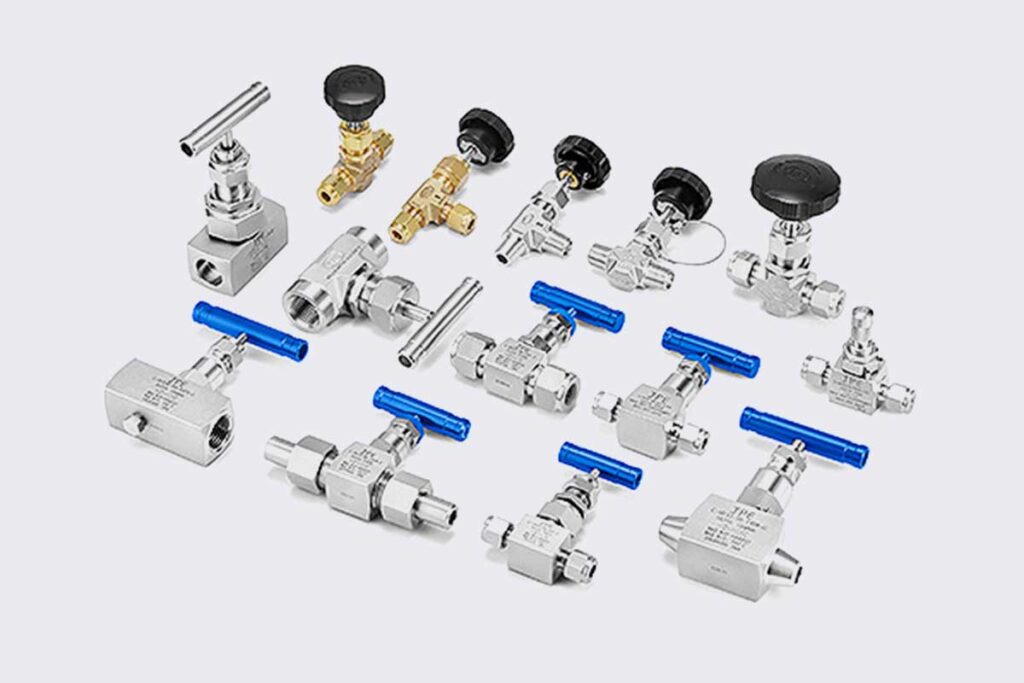

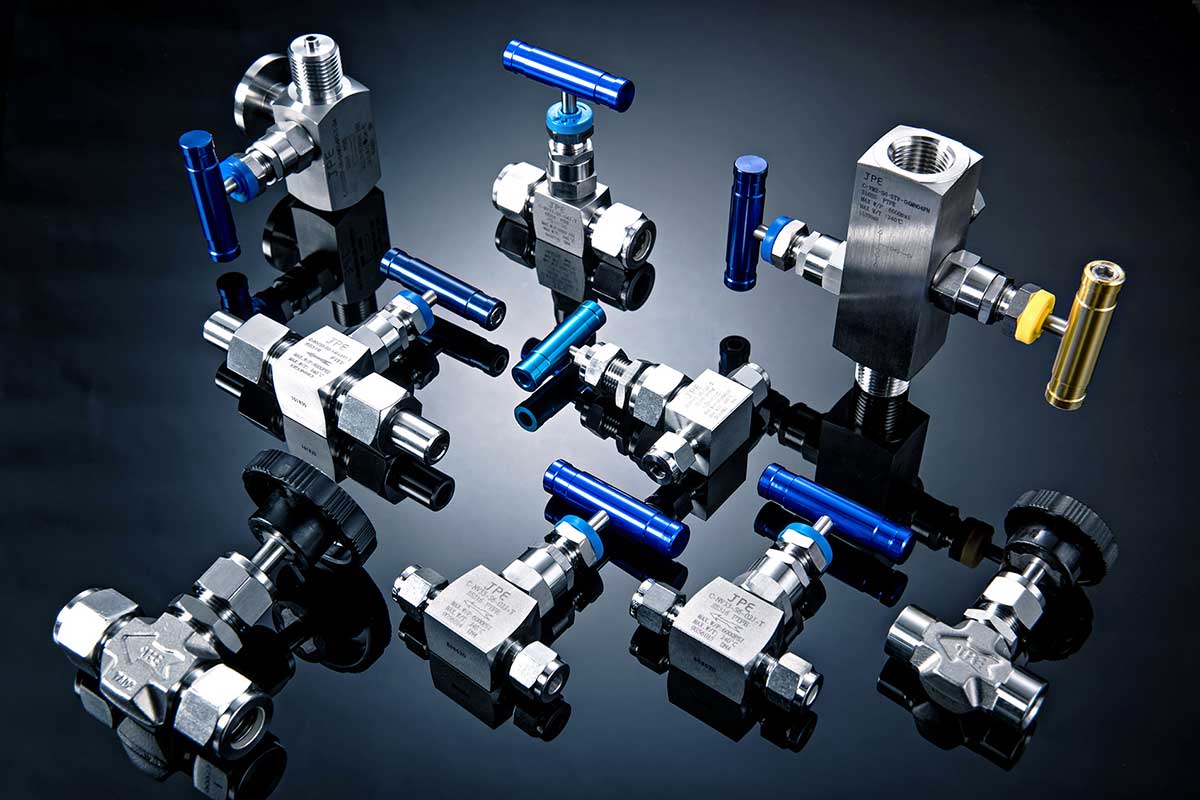

Needle Valves
Inline & angle pattern, union bonnet, oil-free options. For fine flow control.
Typical Sizes:
1/8”–1/2” (3–25 mm)
Material:
SS316/316L; Monel; Brass
Thread Type:
NPT, BSPT, SAE J514
Bleed Valves
Single isolation vent valves for safe system depressurization.
Typical Sizes:
1/8”–1/2” (3–12 mm)
Material:
SS316
Thread Type:
NPT, BSPT

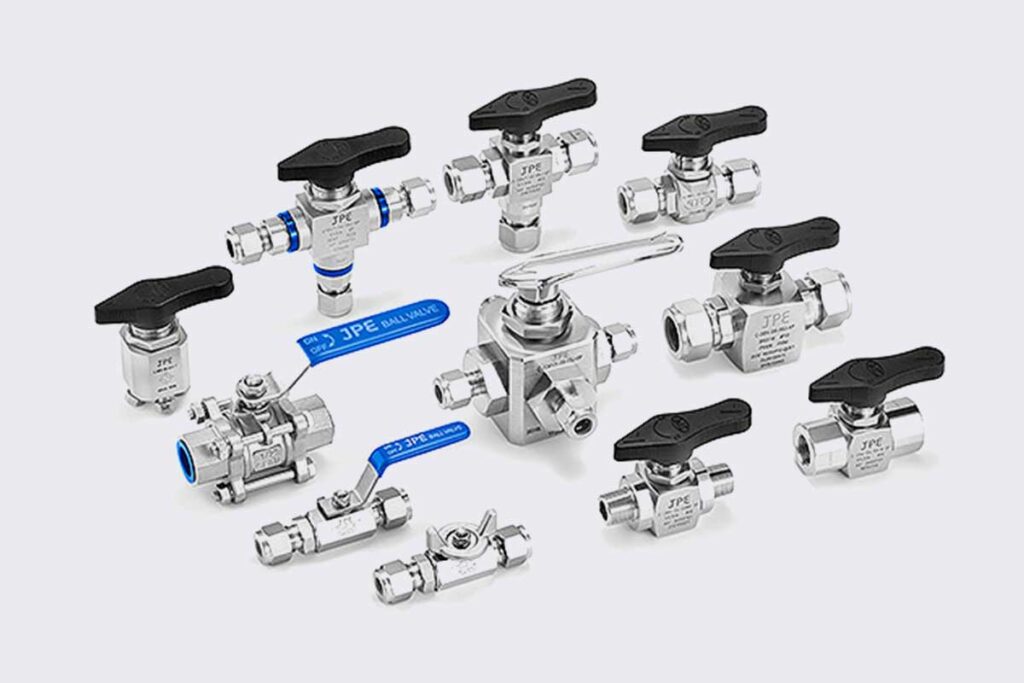

Ball Valves
2-piece/3-piece/trunnion/HP ball valves. Fire-safe, lockable handles, actuator-ready.
Typical Sizes:
1/4”–2” (6–50 mm)
Material:
SS316/316L; PTFE/PEEK seats
Thread Type:
NPT, BSPT, Socket/Union Weld, Flanged

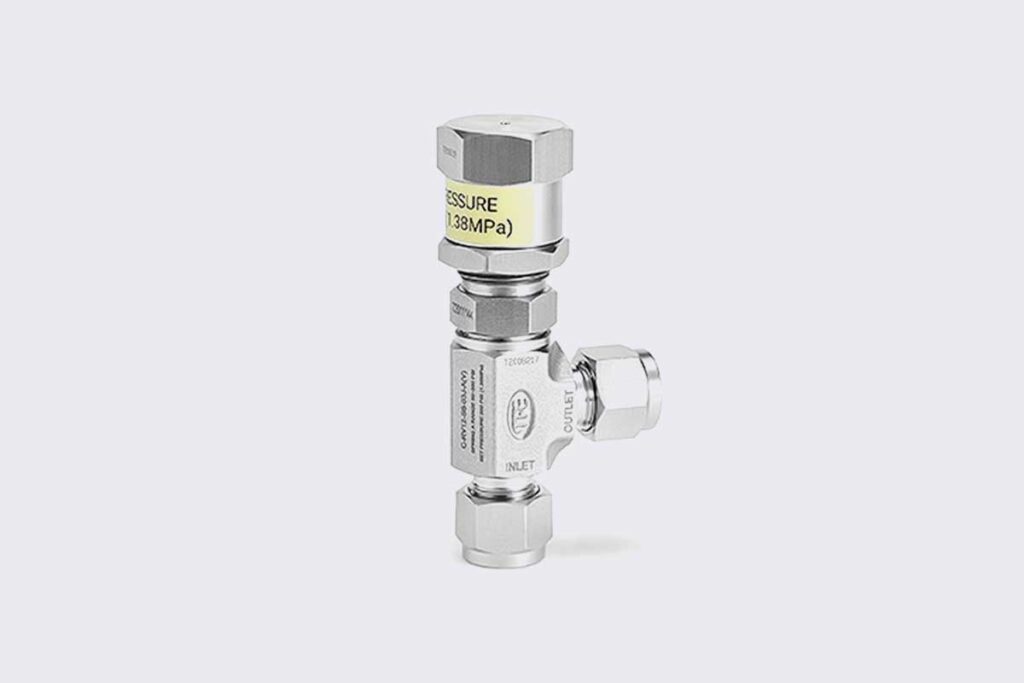

Relief Valves (Proportional)
Spring-loaded, adjustable cracking pressure for over-pressure protection.
Typical Sizes:
1/4”–1/2” (6–12 mm); up to 6000 psig
Material:
SS316/316L; PTFE/FKM seals
Thread Type:
NPT, BSPT, Tube End

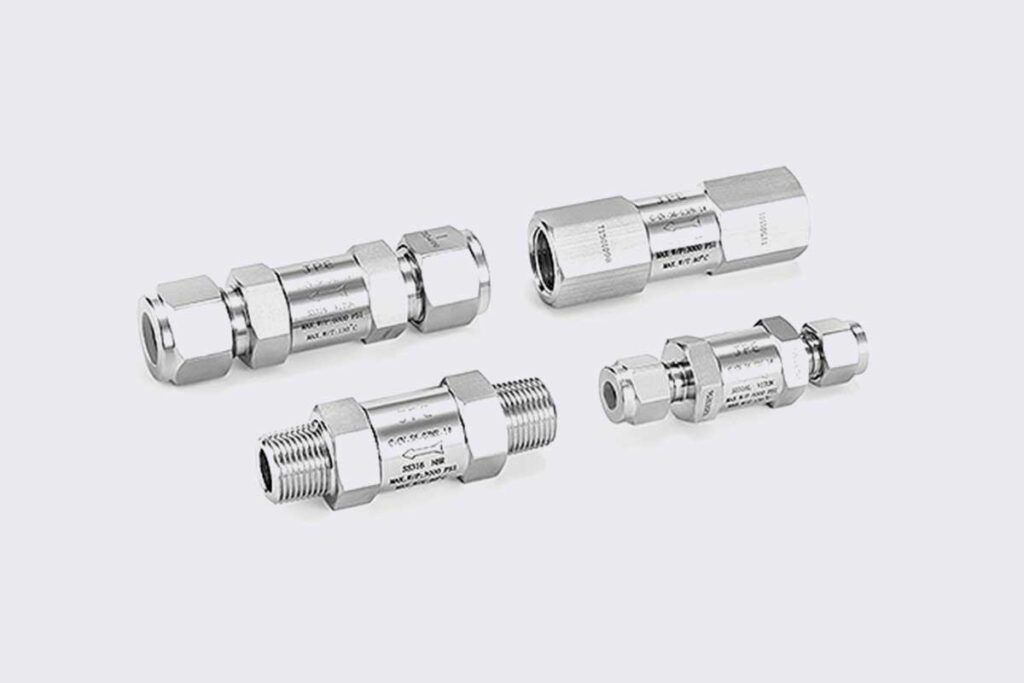

Check Valves
Inline poppet-type, spring-loaded. Cracking pressure 1–25 psig, non-return.
Typical Sizes:
1/4”–1” (6–25 mm)
Material:
SS316/316L; FKM/PTFE seals
Thread Type:
Tube End, NPT, BSPT

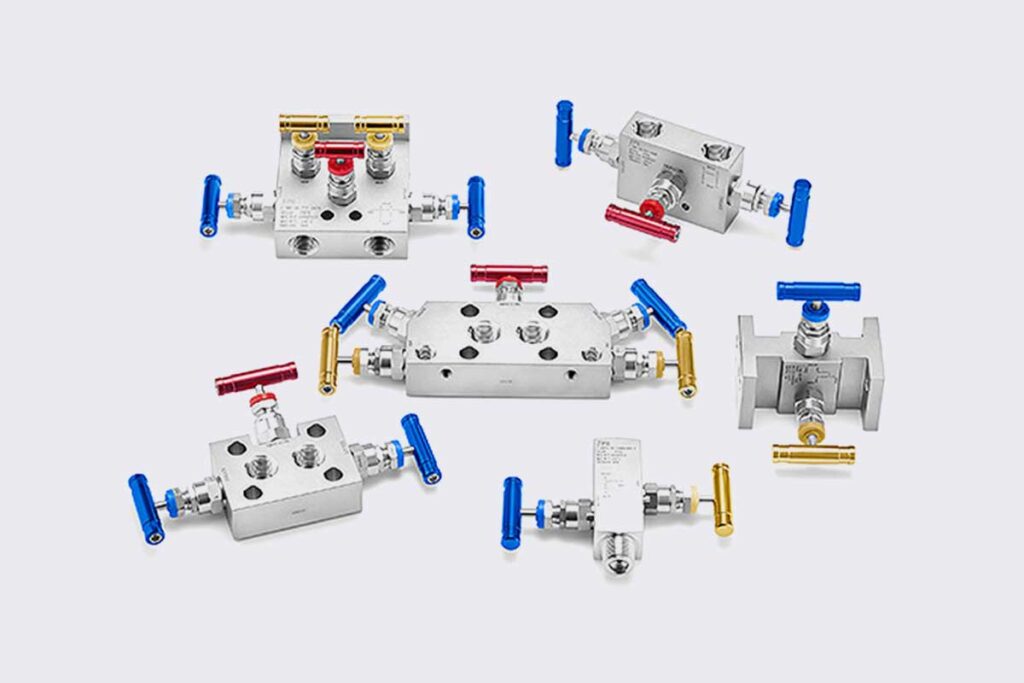

Manifold Valves
2/3/5-valve instrument manifolds for DP transmitters & gauges. Block, bleed, equalize.
Typical Sizes:
1/2” FNPT, Flange as per IEC 61518
Material:
SS316/316L; A350 LF2 optional
Thread Type:
NPT, BSPT, Flanged

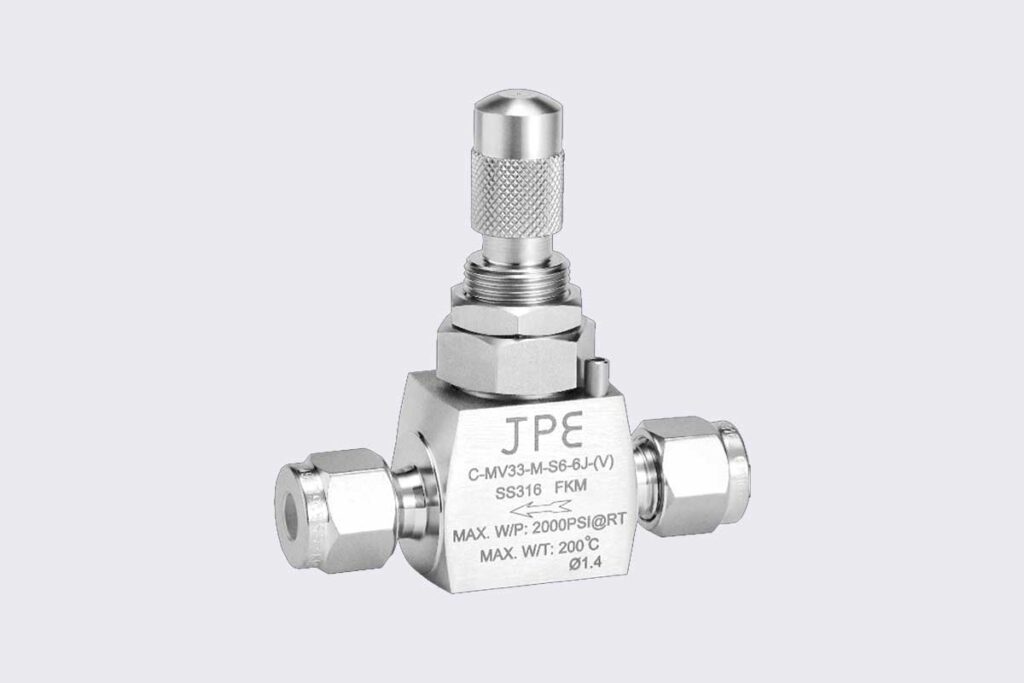

Metering Valves
Fine adjustment metering for analyzer/sampling lines. Panel mountable, bonnet lock.
Typical Sizes:
1/8”–1/4” (3–6 mm)
Material:
SS316/316L; PTFE/FKM
Thread Type:
Tube End, NPT, BSPT

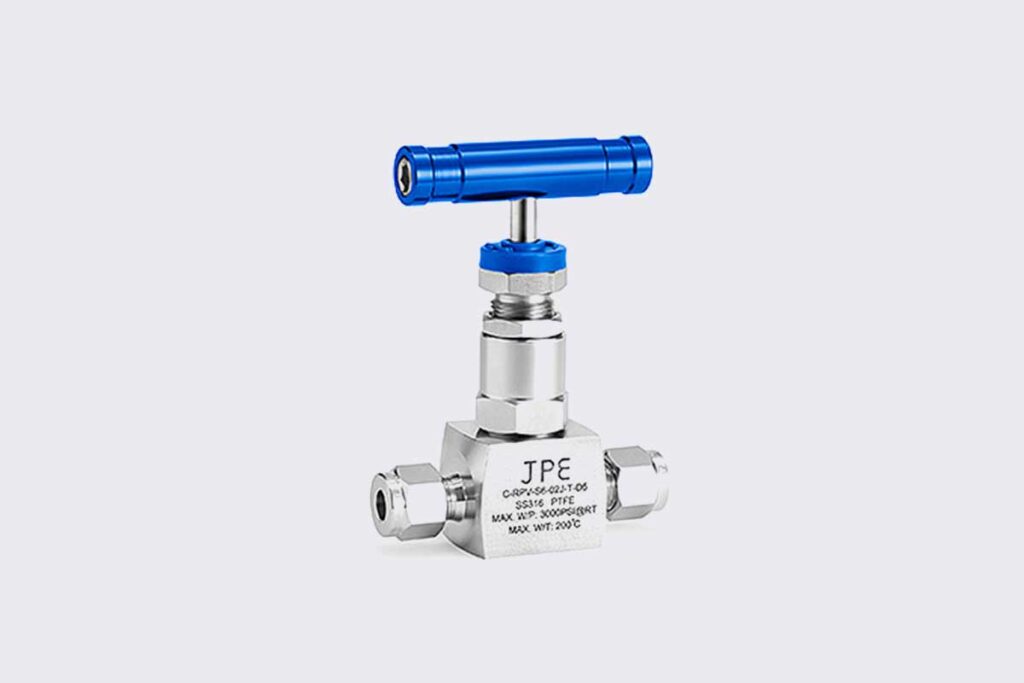

Rising Plug Valves
Straight-through plug design for max flow, low torque.
Typical Sizes:
1/4”–3/8” (6–8 mm)
Material:
SS316/316L; PTFE packing
Thread Type:
Tube End

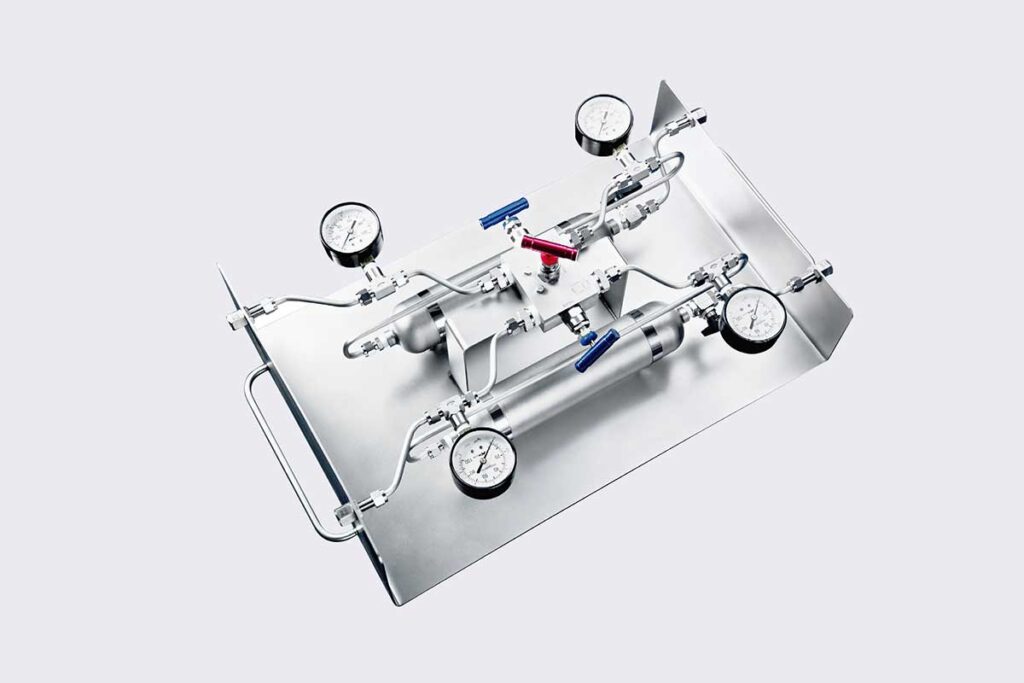

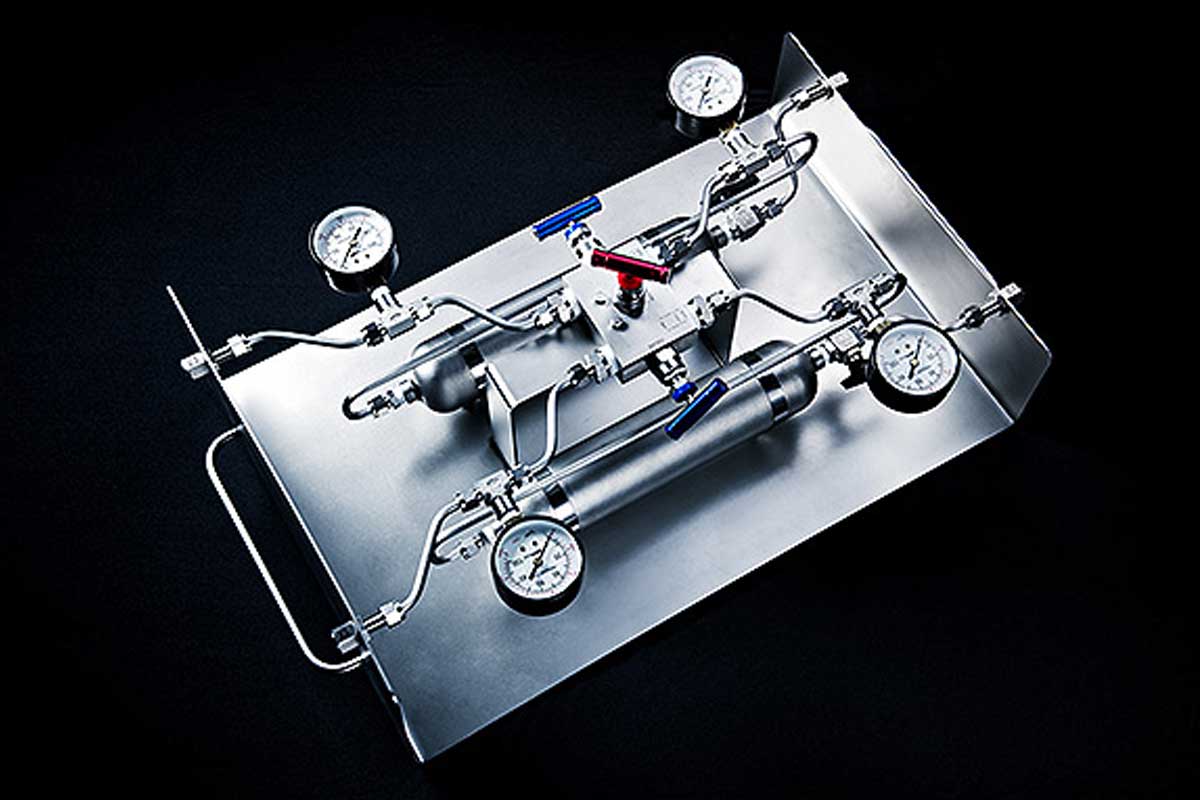

Sampling Systems
Custom panels with valves, couplers, cylinders for safe, representative sampling.
Typical Sizes:
1/4”–1/2”; cylinders 100 ml–5 L
Material:
SS316/316L; Monel/Hastelloy
Thread Type:
Tube End, NPT, BSPT, QC

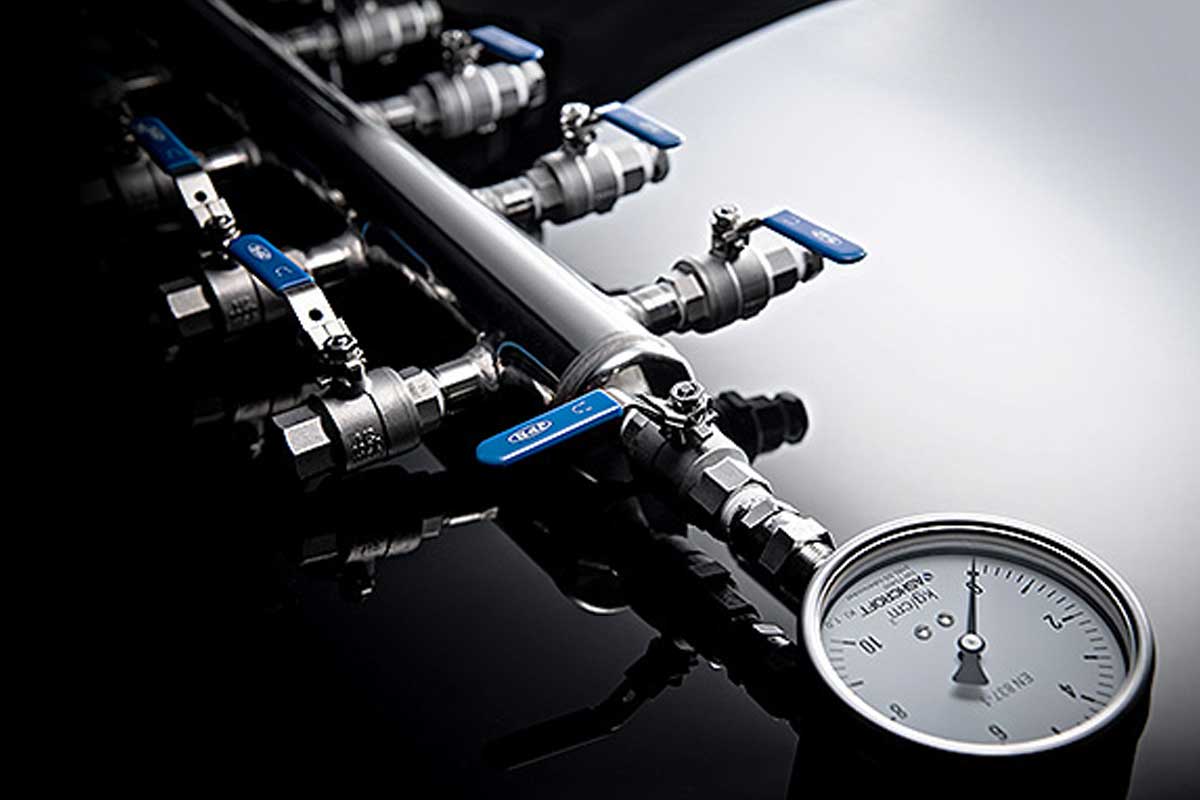

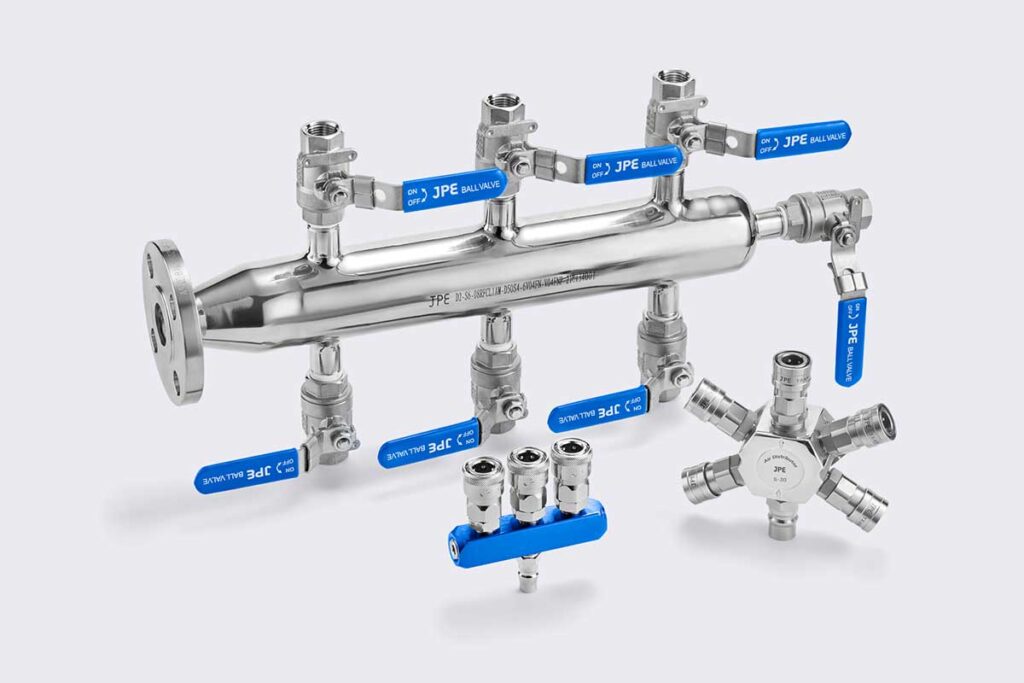

Air Distribution Manifolds
Multi-port air/gas manifolds with isolation valves, gauges, drain valves.
Typical Sizes:
1/4”–1/2”; 2–10 outlets
Material:
SS316/316L; Brass optional
Thread Type:
Tube End, NPT, BSPT

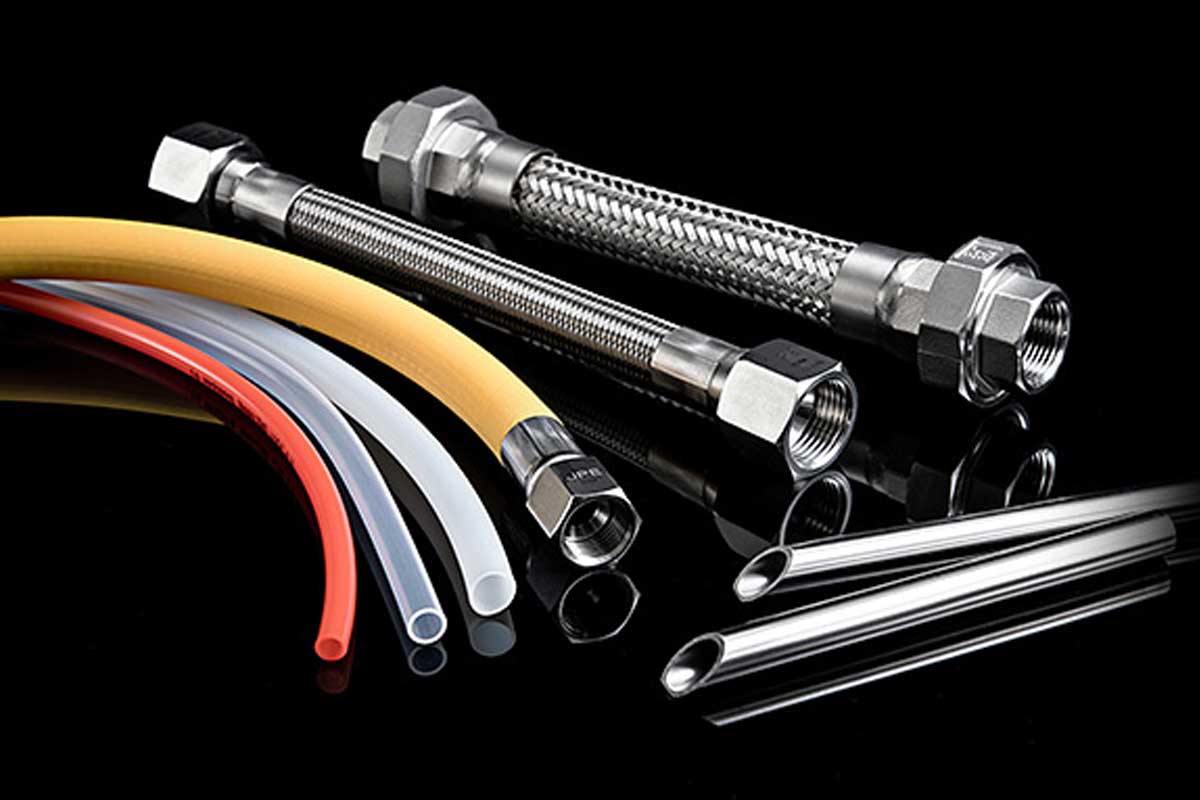

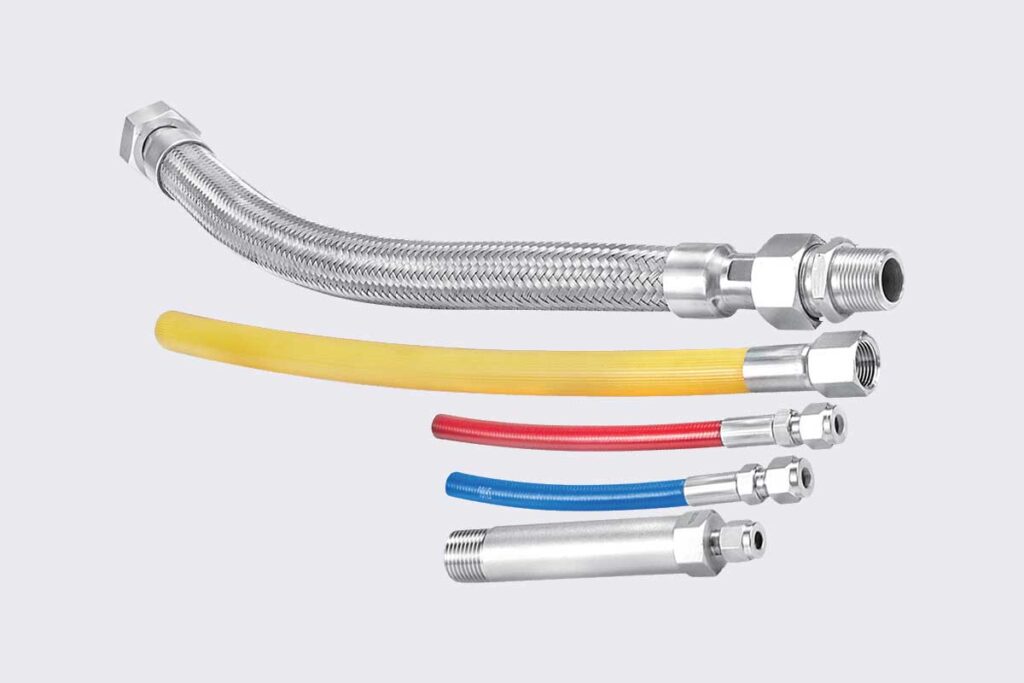

Hoses & Tubes
SS braided hoses, PTFE-lined, PFA, PU spiral, PVC. Fully tested, braided.
Typical Sizes:
1/8”–2” hoses; tubing 1/4”–1”; lengths up to 6 m
Material:
SS304/316L; PTFE/PFA; PU/PVC
Thread Type:
NPT, BSPT, Tube End, JIC 37° flare

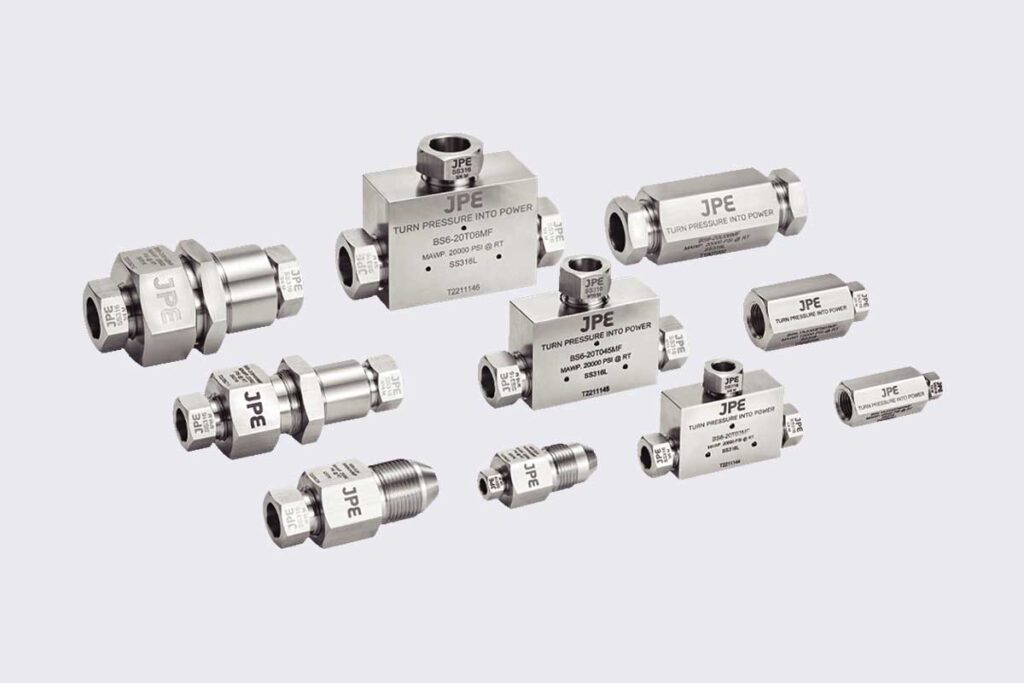

Medium-Pressure Cone & Thread / Pipe Thread Fittings
Cone & Thread connections up to 20,000 psi; pipe threads up to 15,000 psi. Strain-hardened for high-pressure service.
Typical Sizes:
1/4”–1½” OD for C&T; 1/8”–1” NPT
Material:
SS316/316L; NACE MR0175 option
Thread Type:
Medium-Pressure C&T spec; NPT (ASME B1.20.1); SAE AS71051
.
